DYN2 AC Servo Drive

Compact, DC input, ideal for all motion solutions. Industry leading power density and reliability.

The DYN2 servo drive is the next generation of Low Voltage servo drive for universal applications.  Featuring higher resolution encoder feedback, multi-turn option, increased speed and larger power capacity to meet demanding requirements.

Industry standard Pulse/Analog interface with optional easy to use Serial RS232 command allows flexible integration.  For every low capacity servo motion application, the new DYN2 AC Servo Drive is ready to perform.


Documentation + Downloads

Software


DYN2 System Catalog 2015 - [ 05AP-A3412 ]

DMMDRV Installer


DYN2 Specification Manual [ Ver. A1.8 ]


DMMDRV Instruction Manual


DYN2 Robotics Application


Modbus RTU Specification Manual


CAN Protocol Specification Manual


DYN2 AC Servo Drive 3D AP203 STP Model

Features

Applications

  • 30kHz position servo loop with real time tuning

  • Standard 16-bit (65,536ppr) absolute encoder single or multi-turn

  • Low Voltage +60VDC Operation [ Min. +24VDC Max. +75VDC ]

  • Position, Velocity, Torque servo modes

  • 4-wire high speed serial encoder bus, with 8-bit security code for most reliable position feedback

  • Opto-isolated 25kHz PWM sinusoidal amplifier

  • Industry leading package size - 30A peak current capacity

  • Serial RS232 [UART,SPI] Point to Point, S-Curve profile motion. Absolute encoder position feedback. Absolute/Incremental modes.

  • Modbus RS485, CAN Communication Options

  • Small / Medium Size Machine Tool / CNC

  • Stepper / DC Servo Convertion+Retrofit

  • Robotics / EV

  • AGV / AMR

  • Camera / Lighting / Animatronics

Interface


The DYN servo drive utilizes DMM's proprietary servo control technology.  No matter high or low inertia load, the response time is always fast with quick settling time. See how this technology works to optimize any motion control application.

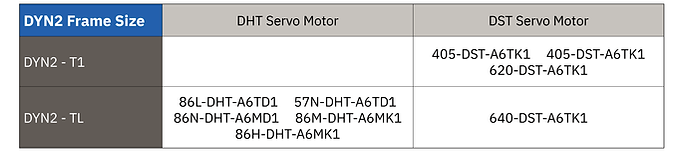

Motor Pair Examples

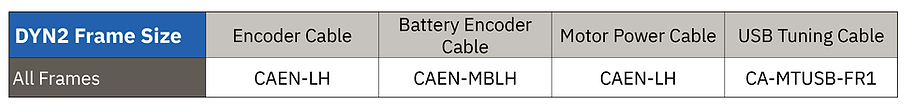

Motor Quick Links

Pricing

Please Contact Us regarding Multi-Turn servo drive pricing.  Standard DYN2 servo drives can be ordered online on our Online Store.

Model Number
Interface
Servo Motor Capacity [kW]
Unit Price (USD)
DYN2-T1A6S-00
Type-A ( Pulse / Analog / RS232 )
0.05 ~ 0.2
165.00
DYN2-TLA6S-00
Type-A ( Pulse / Analog / RS232 )
0.04 ~ 1.0
172.00
DYN2-T1B6S-00
Type-B ( Modbus RS485 / Pulse / Analog / RS232 )
0.05 ~ 0.2
211.00
DYN2-TLB6S-00
Type-B ( Modbus RS485 / Pulse / Analog / RS232 )
0.04 ~ 1.0
216.00
DYN2-T1C6S-00
Type-C ( CAN / Pulse / Analog / RS232 )
0.05 ~ 0.2
221.00
DYN2-TLC6S-00
Type-C ( CAN / Pulse / Analog / RS232 )
0.04 ~ 1.0
216.00
