DYN5 AC Servo Drive

Flagship next-generation AC Servo Drive. Higher performance, extended communication, improved safety and reliability.

Representing the next generation of DMM servo control technology. The new DYN5 AC Servo Drive sets a new benchmark for performance and versatility. The capability of high performance motion control in any application has never been easier to use.

Get a Quote

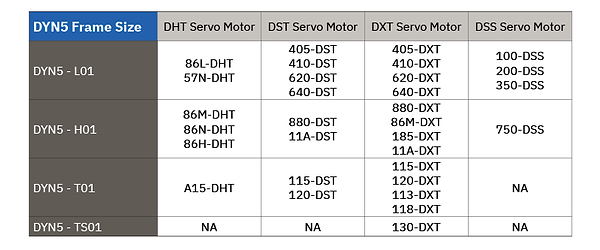

System Selection

Specifications

Documentation + Downloads

Name	Document Version
DYN5 AC Servo System Quick Start	R1A
DYN5 AC Servo Drive Instruction Manual	ZM1-A1A
Release Flyer	A2
Modbus TCP/IP Manual	SL425-10A
EtherNet/IP Manual	DYN5-EIP-SL258-11A
EtherCAT Manual	R2

3D Models (Resource Center)

Features

Applications

New and improved servo control for faster, more accurate positioning.
Standard 16-bit encoder, optional 20-bit encoder.
Single/Three-Phase 110~240VAC ± 10% 50/60Hz input
Position, Velocity, Torque servo modes
50W to 3.0kW motor size
Industral Ethernet Protocols including Modbus TCP/IP, EtherCAT, EtherNET/IP, Profibus
Optional Safe Torque Off (STO) option (per IEC/EN 61800-5-2)
Global Certification: UL 61800-5-1, CSA CSA C22.2 No. 274, European CE
